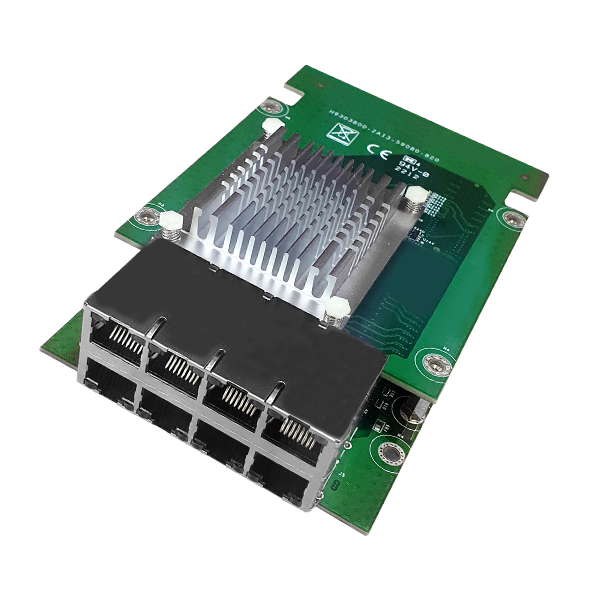

2.5 GbE Proprietary Adapters
  • Intel i225LM/i226LM LAN Controller

  • 8 x RJ45 2.5GbE Ports

  • Proprietary PCIe Gen.2 x8 Connection

  • Fanless design


Platform
Form FactorCASwell NIC Module
LAN Controller1 x Intel i225LM/i226LM
Ethernet Port8 x RJ45 2.5GbE Port(s) on board
Up to 8 x Ethernet Port(s) with maximum 2.5GbE bandwidth
Bus Type1 x Proprietary PCIe Gen2
Dimension (WxDxH)90mm x 151mm x 39mm (3.6" x 6.04" x 1.56")
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Humidity: 0 - 95% RH
Storage EnvironmentTemperature: -30 - 70°C (-22 - 158°F)
Humidity: 5 - 95% RH
OS SupportLinux / Windows
