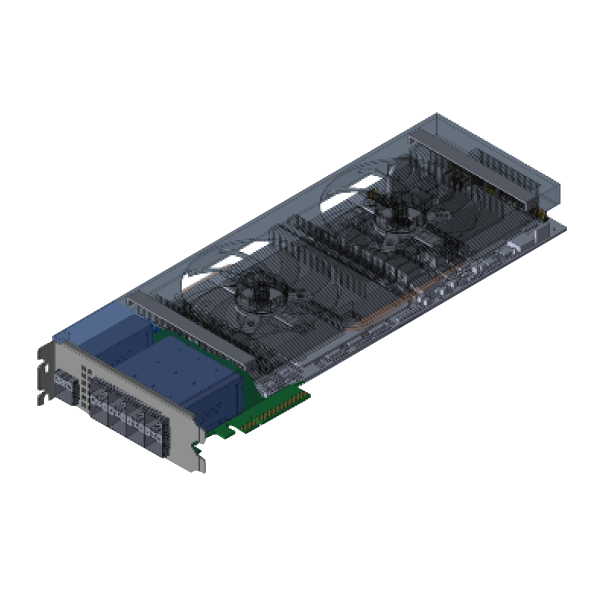

HSC-5340

HSC-5340

产品特性
规格
DPU-Based Acceleration Modules
  • 1x Marvell CN106XXS ARM Neoverse N2 (Up to 24 Cores, 2.5 GHz)

  • Up to 48GB ECC DDR5 (3x DDR Channels)

  • 1x MCU (NXP MIMXRT1176)

  • 8x 25GbE/10GbE/1GbE SFP28 Switch (Software Configurable)

  • 2x 1GbE/100MbE RJ45 (1x Connect to MCU as default)

  • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)


Platform
Processor1 x Marvell CN106XXS ARM Neoverse N2
MCU1x MCU (NXP MIMXRT1176)
Flash Memory32MB (NOR)
System Memory3 x DDR5 ECC (Up to 48GB)
Ethernet Port8 x SFP28 25GbE Port(s) on board
Up to 8 x Ethernet Port(s)
Expansion1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
Storage Device1x M.2 (Key M) NVMe SSD
1x eMMC 5.1 (8 to 64GB)
Power SupplyGoldfinger (Max.: 75W) as primary
ATX connector for additional power input (75W)
Dimension (WxDxH)111.15mm x 312mm x 40.64mm (4.446" x 12.48" x 1.6256")
I/O
Management Console2x 1GbE/100MbE RJ45 (1 to MCU)
1x USB Type-C Console
USB Port1 x USB 3.0 Port(s)
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Operating SystemUbuntu 20.04 (Linux Kernel: 5.4)
