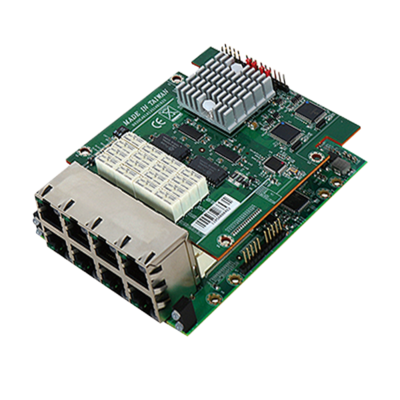

NIP-51482

产品特性

规格

Platform
Form Factor	CASwell NIC Module
LAN Controller	1 x Intel 82580EB
Ethernet Port	8 x RJ45 GbE Port(s) on board Up to 8 x Ethernet Port(s) with maximum 8GbEGbE bandwidth
Bypass	4 segment(s) on board
Bus Type	4_4 x Proprietary PCIe Gen2
Dimension (WxDxH)	85mm x 152mm x 32mm (3.4" x 6.08" x 1.28")
Operation & Certifications
Operating Environment	Temperature: 0 - 45°C (32 - 113°F) Humidity: 20 - 90% RH
Storage Environment	Temperature: 0 - 70°C (32 - 158°F) Humidity: 5 - 95% RH
OS Support	Linux / Windows / FreeBSD
