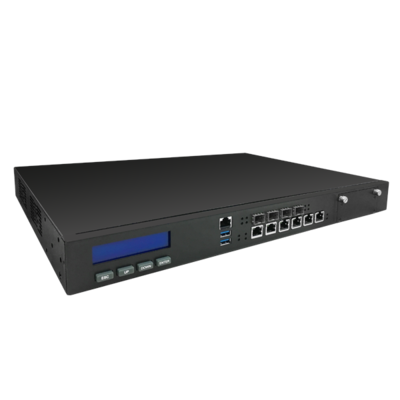

CAR-2080

CAR-2080

CPU： Intel Coffee Lake (Refresh) series platform
内存： 2 x DDR4-2666 ECC DIMMs, up to 64 GB
接口： 6 x RJ45 GbE onboard, up to 18 x RJ45/SFP GbE Ports
产品特性
规格
ModelsCore/ThreadsFrequency (Base/Turbo)CacheTDP
Intel Core i7-87006C/12T3.2/4.6 GHz12 MB65 W
Intel Core i7-8700T6C/12T2.2/4.0 GHz12 MB35 W
Intel Core i5-85006C/6T3.0/4.1 GHz9 MB65 W
Intel Core i5-8500T6C/6T2.1/3.5 GHz9 MB35 W
Intel Core i3-81004C/4T3.6 GHz6 MB54 W
Intel Core i3-8100T4C/4T3.1 GHz6 MB35 W

Intel Pentium G54002C/4T3.7 GHz4 MB54 W
Intel Pentium G5400T2C/4T3.1 GHz4 MB35 W

Intel Celeron G49002C/2T3.1 GHz2 MB54 W
Intel Celeron G4900T2C/2T2.9 GHz2 MB35 W

Intel Core i5-9500E6C/6T3.0/4.2 GHz9 MB65 W
Intel Core i5-9500TE6C/6T2.2/3.6 GHz9 MB35 W

Intel Core i3-9100E4C/4T3.1/3.7 GHz4 MB65 W
Intel Core i3-9100TE4C/4T2.2/3.2 GHz4 MB35 W


Platform
ProcessorIntel Core i7/i5/i3, Pentium, Celeron (Coffee Lake / Coffee Lake Refresh)
ChipsetIntel H310 or C246 PCH (depending on SKU)
System Memory2 x DDR4 2666 MHz UDIMMs, up to 64 GB (ECC available with C246)
Ethernet Ports6 x RJ45 GbE on board
Up to 18 x RJ45/SFP GbE Ports
Bypass 3.02 x pair with Intel H310
Expansion1 x PCIe Gen3 x8 for CASwell NIP Module or Standard NIC
1 x PCIe Gen3 x4 for daughter board (only with Intel C246)
Storage Devices3 x SATA 3.0
1 x M.2 B-key (SATA 3.0)
Power Supply150W PSU
Dimension (WxDxH)438mm x 292mm x 44mm (17.1'' x 11.5'' x 1.7'')
I/O
USB Ports2 x USB 3.0 Ports
Console port1 x RJ-45
Display Output1 x HDMI 1.4 (optional)
Display1 x LCD module (EZIO-310)
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 10°F)
Humidity: 20 - 90% RH (no condensation)
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
Humidity: 5 - 95% RH
CertificationCE/FCC/CB (pending)
OS SupportLinux Kernel
